Motor Reversing Problems? 5 Electrical Timing Errors That Cause Damage

Motor reversing is a common function in industrial applications, but it’s also one of the most error-prone. When electrical timing isn’t perfectly aligned, even minor control faults can create major mechanical stress, arcing, or complete motor failure.

Understanding the timing issues that lead to reversing damage helps maintenance teams diagnose problems faster and protect valuable equipment from avoidable wear. Here are five common electrical timing errors that can cause serious trouble when motors switch direction.

1. Overlapping forward and reverse commands

When both forward and reverse contactors receive power simultaneously — even for a split second — it creates a direct short across the line. This overlap is often caused by worn relay contacts, misconfigured PLC logic, or control circuits without proper interlocking. The result: blown fuses, tripped breakers, and potential motor winding damage.

Tip: Always verify that mechanical or electrical interlocks fully isolate one circuit before energizing the other. Test both contactors under simulated operating conditions to confirm that one fully disengages before the other energizes.

2. Insufficient delay between direction changes

Reversing a motor too quickly after shutdown is one of the most common causes of torque stress and shaft damage. The motor needs time for its magnetic field and mechanical inertia to dissipate before reenergizing in the opposite direction. Without a proper delay, current surges spike well above rated values, overheating windings and shortening insulation life.

Tip: Adding time-delay relays or adjusting PLC timers can prevent these destructive transients. As a general rule, allow at least 1 to 2 seconds between stop and reverse commands for small motors, and longer for high-inertia systems.

3. Faulty or inconsistent control signal timing

In multi-motor systems or conveyor applications, inconsistent control signal timing can cause motors to reverse out of sync. This often happens when a single PLC output controls multiple starters or when sensors introduce delay. Out-of-phase reversal creates jerking motion, belt misalignment, and torque imbalance between drives.

Tip: Synchronizing control logic and verifying signal propagation time across devices is essential for coordinated reversals. Use oscilloscope or PLC monitoring tools to measure the signal lag between devices and fine-tune the timing for synchronized performance.

4. Power loss during transition

Temporary voltage dips or momentary interruptions during a direction change can leave one contactor partially engaged. This half-energized state allows arcing or chatter between contacts, eroding them over time. Once contact surfaces pit or weld, the motor may receive unpredictable power flow, increasing the likelihood of mechanical lockup or electrical failure.

Tip: Power conditioners and contactor health checks reduce this risk significantly. Schedule periodic contactor inspections and look for pitting, discoloration, or excessive noise during operation as early signs of deterioration.

5. Ignoring motor deceleration profiles

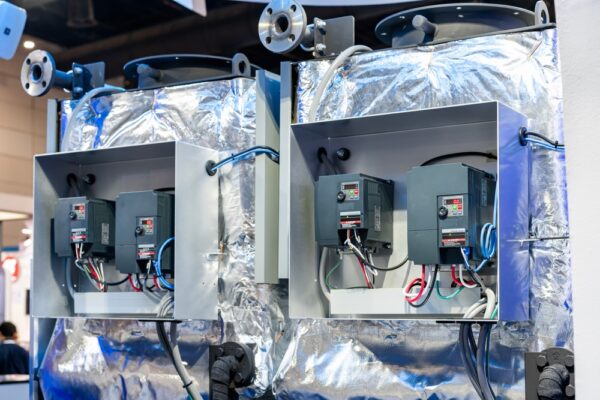

Some control systems assume motors stop instantly, but mechanical inertia says otherwise. When deceleration profiles aren’t properly configured in variable frequency drives (VFDs) or soft starters, the motor may still be spinning forward as the reverse command engages. This back-EMF surge can overload the drive or trip overcurrent protection.

Tip: Configuring the right deceleration ramp allows the motor to slow naturally before reversing, extending both drive and motor life. Program a controlled deceleration ramp in your VFD settings and verify the motor’s speed feedback to ensure it reaches zero before reversal.

Time is everything in reversing control

In motor control, a few milliseconds can mean the difference between smooth operation and catastrophic damage. Proper sequencing, verified delays, and synchronized timing are the foundation of reliable reversing systems. Whether you’re troubleshooting frequent trips or redesigning a control panel, revisiting your electrical timing parameters is one of the most effective ways to extend motor longevity and prevent costly downtime.
