How to Prevent Emergency Stop False Alarms
When an emergency stop triggers a production halt on the factory floor, you might be relieved when you find out that it’s a false alarm. But false alarms aren’t harmless. They cost time, interrupt workflows, and throw operators into crisis mode for no reason. And when emergency stops get too sensitive (or too flaky) real emergencies risk being ignored altogether.
The last thing you want in your factory is a “cry wolf” situation. Frequent false alarms detract from the seriousness of a real emergency — and the ramifications could be dire. If the E-stop system keeps flagging ghost faults, it’s not doing its job, and neither is the machine. Here’s how to fix and prevent emergency stop false alarms.
Look at the entire circuit — not just the switch

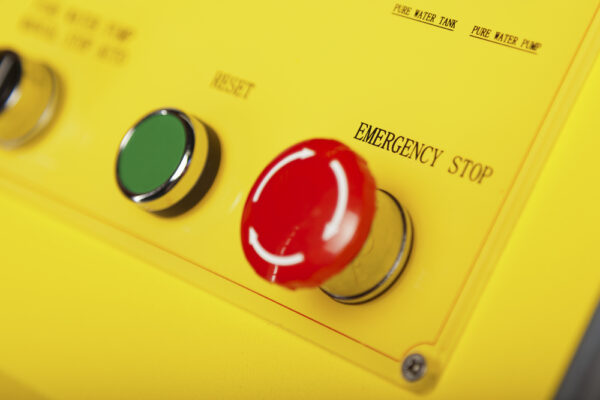

The mushroom button is just the front end. Behind it is a circuit with logic, wiring, relays, and power rails that all need to behave exactly right. One loose terminal or a flaky relay coil can mimic a true E-stop event. And it won’t show up in a visual check alone. Start by mapping the full circuit, asking these questions:
- Are any contact blocks loose, misaligned, or wearing out?
- Is there oxidation or dust buildup on normally closed contacts?
- Are there splices or junctions prone to intermittent open circuits?
- Are safety relays activating consistently under load?
False trips can also come from electrical noise. DC contact chatter, nearby VFDs, and poorly routed signal wires can all induce voltage spikes in low-voltage E-stop circuits. And if the control voltage is floating — or shares a ground path with power electronics, it’s even more vulnerable.
To really get a glimpse at potential electrical noise, use a scope, watching for spikes or dropouts when motors start or conveyors shift. If there’s noise, isolate it. Then, shield cables, clean up grounding, and add filters where needed.
Test reset and latching logic carefully
Emergency stop systems need a manual reset for a reason. But if the reset circuit isn’t latching cleanly or resets without a button press it’s a safety risk disguised as convenience. Run through E-stop to reset timing, relay dropout voltage, coil release delay, and controller response to out-of-sequence resets. If the logic isn’t consistent, you’ve got a vulnerability. If it fails intermittently, it’s not a matter of if the line will stop — it’s when.
Don’t ignore mechanical failure points
Some false trips aren’t electronic. They’re physical. One bump from a forklift or a stiff reset spring is all it takes. If the physical interface doesn’t hold up, even a perfect circuit won’t save you from downtime. Look for buttons that stick halfway, plastic mounts that flex under vibration, E-stop boxes mounted too close to walkways or pallets, and switches installed without lockout guards.
Inspect and replace aging wiring
Wiring fatigue is a silent trip hazard you need to address. Heat, movement, and time can crack insulation or create high-resistance joints that intermittently open under vibration. In low-voltage safety circuits, even one unstable conductor is enough to trigger a system fault. You can address this by re-terminating aging connectors and replacing dried-out cable runs. And make sure to avoid daisy-chaining through junction boxes that aren’t rated for it!
Stay vigilant in safety equipment repairs
Unabated, false trips aren’t just inconveniences — they’re liabilities. Now through the end of the month, GES is helping you stay on top of E-stop maintenance with 10% OFF single repairs or 15% OFF 3+ repairs!
Test under real operating conditions
Testing after repair is critical, or the trips may continue. The system might look fine at rest, and then the conveyor starts. Or the fan loads up — and suddenly, false trip. That’s why GES replicates real-world scenarios during repair and testing. We simulate live load, observe timing response, and verify that logic holds under stress. We know it’s not enough to think the E-stop works. You have to prove it — before the next trip halts production again.
