How Mixed-Voltage Systems Create Troubleshooting Challenges
A fault alarm trips. The technician heads to the panel carrying a multimeter and a basic assumption: This is a 480V problem. Two hours later, the 480V circuit checks out clean. The actual fault is in the 24VDC I/O network, triggered by noise from the 480V side coupling into a control signal.
The voltage level was right there in the name of the system. The problem was somewhere else entirely. That’s what mixed-voltage troubleshooting looks like in practice.
Why facilities run multiple voltage levels
Getting ready to troubleshoot a panel? The first thing to keep in mind is that modern plant floors layer voltage by function:
- 480V three-phase handles motors, drives, and heavy loads.
- A step-down transformer pulls 120VAC for control circuits, HMIs, and legacy contactors.
- A switched-mode power supply converts that down again to 24VDC for PLCs, sensors, and I/O devices.
Each level exists for engineering reasons: efficiency, safety ratings, and component compatibility. Together, they create a system where the architecture is logical, but the troubleshooting isn’t.
Why faults don’t stay in their lane
The core problem with mixed-voltage systems is that a fault in one voltage domain can produce symptoms in another. For instance, a ground fault on a 120VAC control circuit can couple noise into adjacent 24VDC signal wiring through capacitance, causing erratic PLC inputs or analog signal drift. A failing 24V power supply can look like a sensor dropout. A VFD fault can present as a control logic problem.
The bottom line is the symptoms point one direction, but the source is somewhere else.
In floating or ungrounded control circuits, the situation gets worse. A single line-to-ground fault can push voltage on the healthy side of the circuit well above expected levels, producing meter readings that don’t make sense and send technicians chasing phantom faults. Common misdiagnosis patterns in mixed-voltage systems include:
- A 480V ground fault appearing as a 24VDC sensor dropout
- 120VAC noise coupling into 4-20mA analog signal loops
- A floating DC common causing intermittent PLC I/O faults
- A control transformer secondary fault triggering an upstream 480V ground fault relay
How documentation gaps compound the problem

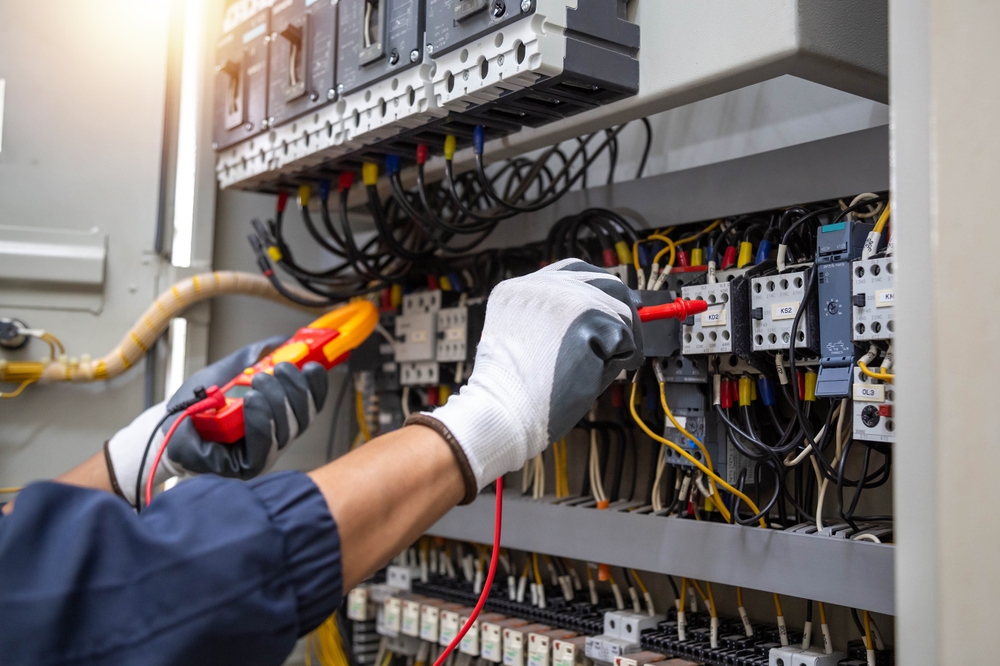

Accurate troubleshooting in a mixed-voltage system depends on wiring diagrams that clearly map which conductors carry which voltage. In older facilities — or after years of incremental additions and machine retrofits — this documentation is often incomplete, outdated, or missing entirely. For example, a technician probing a 120VAC control enclosure may not know a 480V feed passes through the same cabinet.
Tip: NEC 409.110 requires panels supplied by more than one power source to be marked indicating that multiple disconnects are required to fully de-energize the equipment (though field reality doesn’t always match code).
How PPE requirements shift across voltage levels
A mixed-voltage panel isn’t one hazard but several stacked on top of each other. The arc flash risk at 480V is categorically different from working on a 24VDC circuit, and both can be present in the same enclosure simultaneously. That means a technician who suits up for 24V and encounters an unmarked 480V feed has a documentation problem, a PPE problem, and a serious safety problem all at once.
When voltage levels interact, troubleshooting must account for it
Mixed-voltage systems are well-designed by intention. The challenges surface when something fails, and the diagnostic process treats each voltage domain as isolated from the others. Methodical fault isolation — starting with accurate documentation, understanding how voltage domains interact, and matching PPE to the hazard — is what separates a fast diagnosis from a long one.
