DC Motor Commutator Repairs for Longevity and Performance
A well-maintained DC motor commutator can double or triple equipment life while cutting energy waste. The catch? It’s easy to overlook basic upkeep — that is, until problems surface. Commutators need service like every other vital component. This guide breaks down a few simple yet essential maintenance steps that, when handled properly, can prevent costly repairs and boost DC motor efficiency.
What is a commutator?

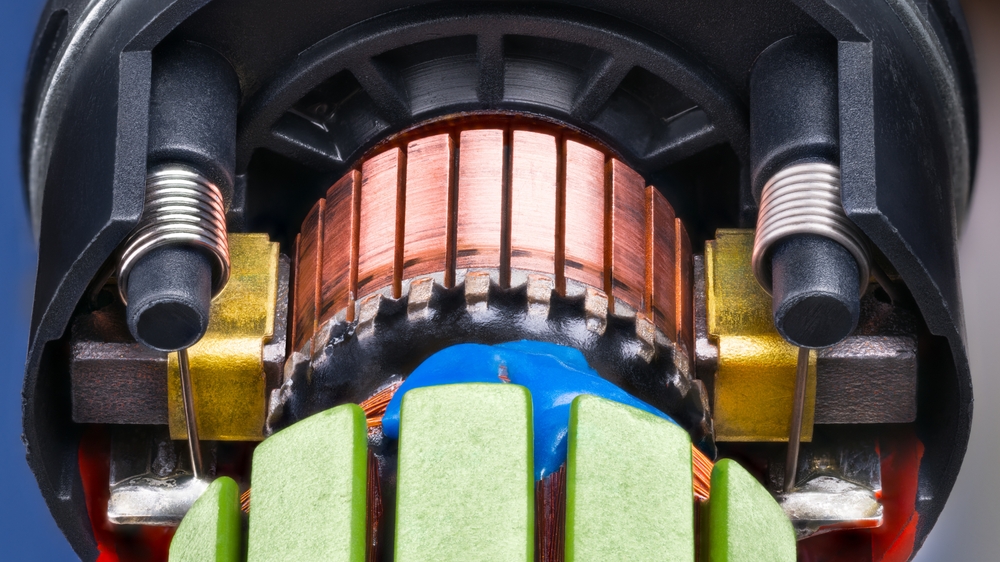

A commutator is the mechanical switch at the heart of every DC motor. Made up of copper segments separated by mica insulation, it converts electrical energy into mechanical motion by controlling current flow through the motor’s windings. The commutator works with carbon brushes to create the switching action that keeps the motor spinning. Think of it as a rotating electrical distributor that must maintain near-perfect surface conditions to work efficiently.
Signs your commutator needs attention
Catching commutator problems and acting early can save you the headache of DC motor downtime. Beyond regular inspections, the best way to stay ahead of potential commutator problems is by focusing on a few key performance indicators. Watch for these tell-tale signs:
- Unusual sparking or arcing between brushes and the commutator surface suggests worn or damaged segments, particularly during speed changes or under varying loads.
- Increased noise levels during operation point to developing mechanical issues, often accompanied by unusual vibrations or resonance.
- Higher than normal operating temperatures indicate friction problems or electrical resistance, which can accelerate wear and reduce efficiency.
- Inconsistent motor speed or performance signals brush-commutator contact issues, especially noticeable during startup or when changing speeds.
3 steps for commutator maintenance and refurbishing
As you identify threats to your DC motor’s commutator, make sure to follow with swift action. A simple, three-step process forms the foundation of effective commutator care and helps prevent issues from snowballing:
- Clean and resurface: Strip away carbon dust and debris using a commutator stone or specialized cleaning tools. Remove just enough material to restore roundness and surface finish. This process demands precision! Taking off too much copper shortens commutator life. A properly resurfaced commutator should have a smooth, bronze-like finish with no visible grooves or scratches.
- Check brush fit and pressure: Measure brush spring tension and adjust to manufacturer specifications. Replace brushes showing uneven wear patterns or those worn beyond 50% of original length. Proper brush-to-commutator contact reduces arcing and extends component life. Pay special attention to brush grade selection — using the wrong grade can accelerate wear and create unnecessary maintenance issues.
- Test for underlying issues: Use a growler to detect shorted segments or high-resistance connections. Measure commutator runout with a dial indicator — readings above 0.002 inches typically require immediate attention. Document all readings to track wear patterns over time. Include resistance measurements between adjacent segments to spot developing problems early.
Leave motor services to GES
Beyond DC motor maintenance, GES is also your preferred partner for servo motor repairs. Now through the end of January, we’re offering 10% OFF single repairs and 15% OFF 3+ repairs on all servo motors!
The ROI of commutator care
Well-maintained commutators run cooler and more efficiently, cutting energy costs while extending equipment life. On average, every dollar spent on preventive commutator maintenance typically saves $3-5 in emergency repairs and lost production time. That’s the kind of math that makes sense in any facility. When combined with proper documentation and trending analysis — and a reliable partner like GES — these maintenance practices form the foundation of a reliable motor management program.
