Analyzing PLC Ladder Logic: Program Flow and Issue Diagnosis

What happens when a PLC follows the wrong instructions? A single misfire in ladder logic can send a machine into chaos, causing unexpected stops, erratic movements, or even conflicting commands. Troubleshooting these issues goes beyond spotting errors in the code. It requires knowing exactly how the program flows and how the controller processes inputs and outputs — and where hidden faults might be lurking.

Follow the scan cycle to diagnose problems

Every PLC follows the same sequence: read inputs → execute logic → update outputs → repeat. This cycle happens in milliseconds, but if an issue arises, breaking down the flow step by step is the best way to pinpoint the problem. Checking each phase of the scan cycle can help you isolate whether the failure’s due to a missing input, a programming error, or an unresponsive output:

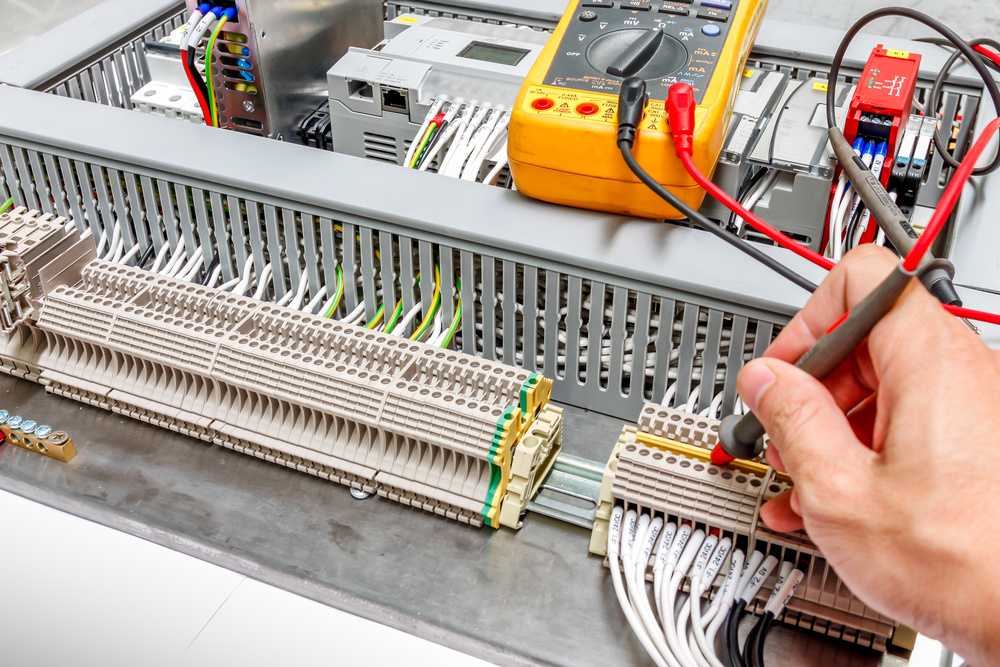

• Inputs: The PLC collects real-time data from sensors, switches, and field devices. If an input isn’t registering, it might be a wiring issue, a sensor malfunction, or a faulty I/O module.
• Logic: The controller processes rungs in ladder logic from top to bottom, left to right. Any improperly placed instructions or conflicting conditions could result in unexpected behavior.
• Outputs: Once logic execution finishes, the PLC activates outputs. If an expected output doesn’t change, the issue could be in relay conditions, timer settings, or the program scan order.

Look for these common ladder logic issues

A well-written ladder logic program keeps machines running smoothly, but small mistakes can easily cause deviations from expected outputs. If something isn’t working as expected, check these common problem areas:

• Conflicting instructions: If one rung tells an output to turn on while another tells it to turn off, the last evaluated condition wins. Scan order always matters.
• Timer and counter misalignment: If a timer preset is too short, it might not allow enough time for an event to complete before moving to the next step.
• Memory register errors: Some registers reset when power cycles, while others retain values. If a counter or internal bit isn’t acting consistently, review how it’s stored.

Use live monitoring to track logic execution

Instead of guessing what the PLC is doing, connect to the controller and watch the logic in action. Most PLC programming environments allow real-time monitoring, highlighting active rungs and live register values. In a sandbox environment you can temporarily override input conditions or force outputs on/off to see how the logic reacts. If logic takes longer than expected to execute, look for long-loop scans, redundant logic, or excessive messaging between devices. Observing live program flow often reveals issues that would be impossible to catch by just reading the code.

Well-documented ladder logic also makes future diagnosis easier — a small investment in documentation saves hours of frustration down the line. Label rungs and coils, and use descriptive tag names that explain function rather than generic addresses. You can also add rung comments to clarify logic purpose, reducing the need to reverse-engineer old programs. Above all, keep a revision history to prevent guessing games in the future.

Sometimes software fixes aren’t enough

Some PLC issues go beyond programming errors. If troubleshooting reveals deeper hardware failures — like a corrupt processor, damaged I/O module, or failing power supply — software tweaks won’t fix the problem. Instead of losing time to trial-and-error fixes, trust the experts at GES to guarantee accurate diagnosis and long-term reliability.

Now through the end of the month, we’re offering 10% OFF single repairs, 15% OFF 3+ repairs on Siemens products, including PLCs. If you’re experiencing persistent issues, now’s the time to fix them — before faulty logic brings down critical systems.
